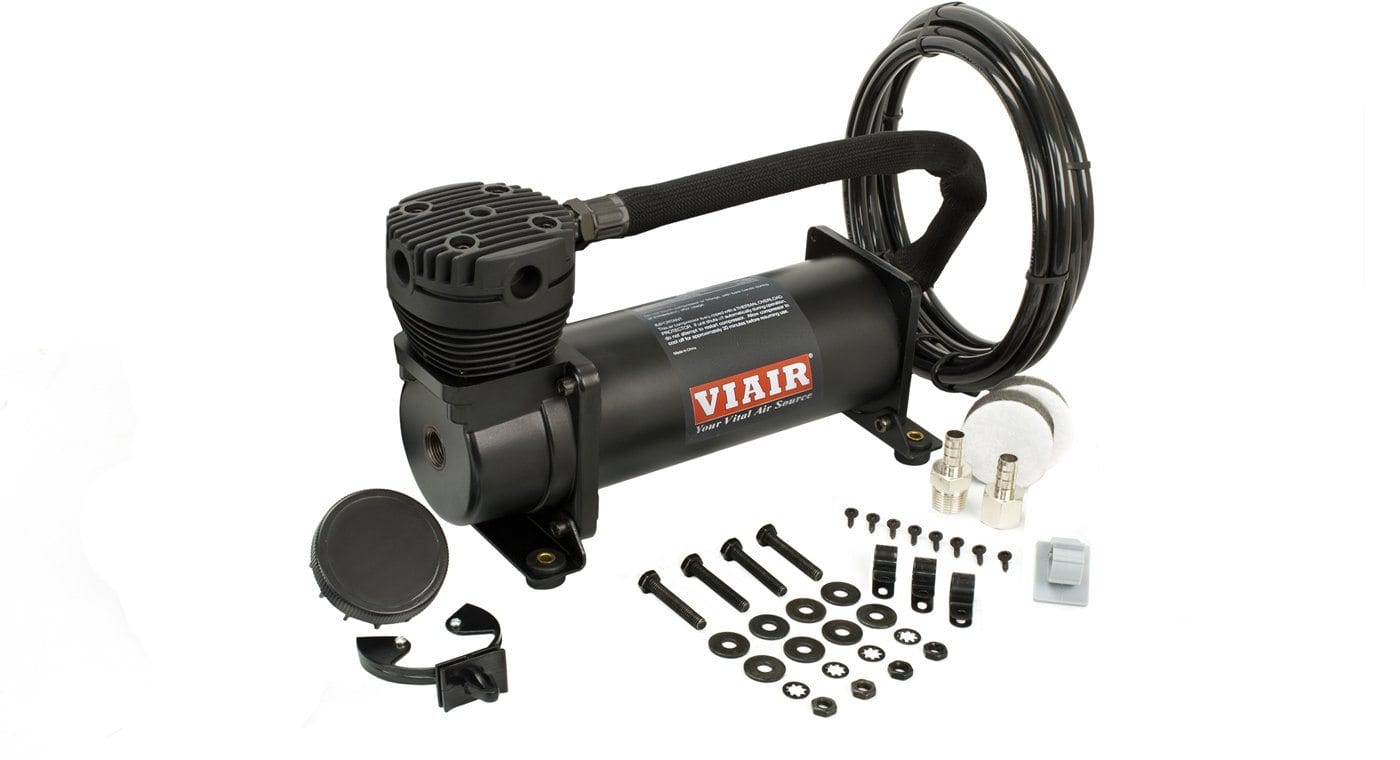

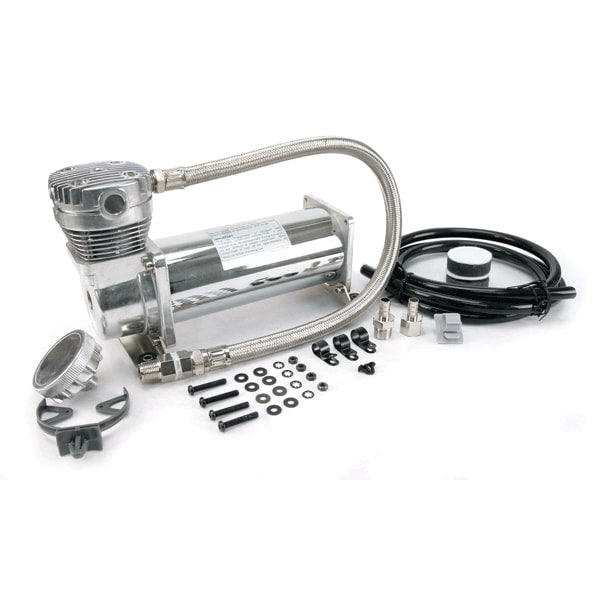

Viair 480C Air Compressor (Chrome or Stealth Black)

Viair 480C Air Compressor (Chrome or Stealth Black)

480C is a truly rated, 200 PSI-rated compressor. It features horizontal cooling fins and a trapezoidal head design, a standard 3/8” stainless steel braided leader hose with 3/8” NPT inline check valve and insulated wiring.

FEATURES
– Thermal Overload Protector
– Check Valve
– Vibration Isolators
– Mounting Hardware
– Stainless Steel Braided Leader Hose
– Air Line for Remote Mount Air Filter
– Remote Mount Air Filter Assembly
– (2) Replacement Air Filter Elements
– Installation Instructions
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
– Max. Working Pressure: 200 PSI
– Max. Air Tank Size: 5.0 Gallon
– Max. 12V Amp Draw: 23 Amps
– Ingress Protection Rating: IP67
– Dimensions: 10.87″L x 4.2″W x 6.75″H
– Net Weight: 11.05 lbs.
2.5 GALLON TANK FILL RATE
0 to 145 PSI 2 min. 50 sec. (± 10 sec.)
110 to 145 PSI 57 sec. (± 05 sec.)
0 to 200 PSI 5 min. 02 sec. (± 10 sec.)
165 to 200 PSI 1 min. 30 sec. (± 05 sec.)
5.0 GALLON TANK FILL RATE
0 to 145 PSI 6 min. 02 sec. (± 10 sec.)
110 to 145 PSI 1 min. 55 sec. (± 05 sec.)
0 to 200 PSI 10 min. 30 sec. (± 15 sec.)
165 to 200 PSI 3 min. 10 sec. (± 10 sec.)

$337.00 USD
$337.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
