Air Lift Performance 3H Management

Name: Air Lift Performance 3H Management
Brand: Ghost Garage
Price: 1992.0 USD
Availability: InStock

The 3H from Air Lift Performance is both a height and pressure based management that features 5 preset heights and individual four corner air spring control. The height based sensors give the system the ability to automatically and accurately re-level when loads change (e.g., adding a passenger or traveling with luggage).

Installing height sensors is often a daunting task for the weekend mechanic, but worry not because Air Lift has designed the 3H so that it can operate in "pressure-only mode" in the event that you don't have time to get the sensors installed right away.. Or you just can't wait to test out your new suspension!

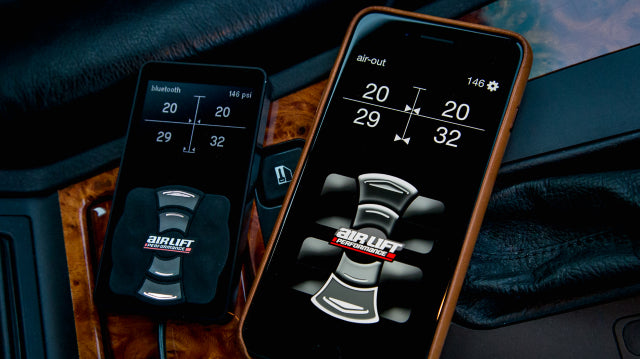

The 3H’s wired digital controller displays all four bag pressures as well as the tank pressure. The controller uses a full color, backlit screen and features a rotatable keypad which allows for either vertical or horizontal controller mounting.

Air Lift’s mobile app allows the vehicle to be put into a ‘show mode’ which enables you to remotely control the air suspension using your Bluetooth enabled smart phone (iPhone/Android) from a distance once the vehicle has been turned off. No additional hardware is required to use this feature, it is built into every 3P and 3H system! Future system updates can be applied through the app as well.

Features:

(5) height and pressure presets
Automatic leveling (with height sensors installed)
Manual mode for individual air spring control
Digital controller with color screen
Rotatable keypad that allows for horizontal mounting
Mobile app (no additional hardware required)
System updates through mobile app
Combined ECU and manifold
Rise on start
2 year limited warranty, extendable up to 4 with the purchase of Air Lift brand suspension.

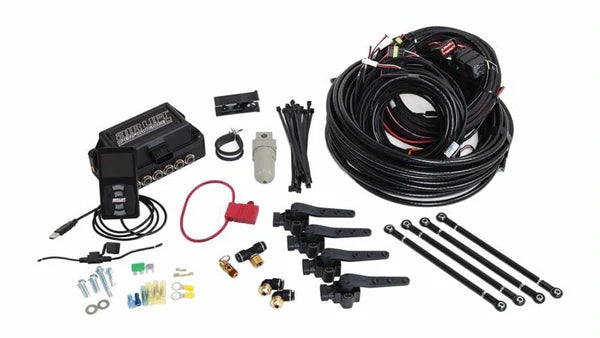

Includes:

Combined ECU/Manifold Unit

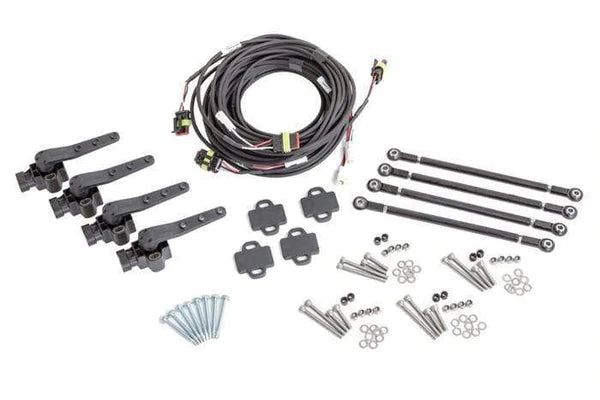

(4) Air Lift Performance Height Sensors and Mounting Hardware
ECU/Manifold Mounting Hardware
Air Lift Performance 3H/3P Controller and Harness
Pre-assembled ECU/Manifold Wiring Harness with built-in Compressor Relay
SMC Water Trap (with fittings)
In-line Fuse Holders (with fuses)
Wiring Terminals for hassle-free Installation
60 ft bundle of DOT-approved air line

$1,992.00 USD

Sale Sold out

Shipping calculated at checkout.
